Industrial Camera Enclosure CH87 - IP69

Manufacturer: Argutec

SKU: CH87.DIA83

Delivery date: 2 weeks

€540.69 excl tax

+ IP69 / IP69K

+ Rugged aluminium enclosure (sealed)

+ H-K9L glass (N-BK7 eq.), AR MgF₂, 390–700 nm (opt. 900 nm)

+ For large industrial cameras

+ Guiding rods for easy installation and reconfiguration

+ Passive cooling

+ Variable mounting (slot nut)

+ Custom length, optional custom cable gland

+ IMPORTANT: Please specify the camera and lens model in your order to ensure compatibility.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Specifications
Contact Us

Overview

Datasheet (EN)

User manual (EN)

IP69 Test Report

3D step model

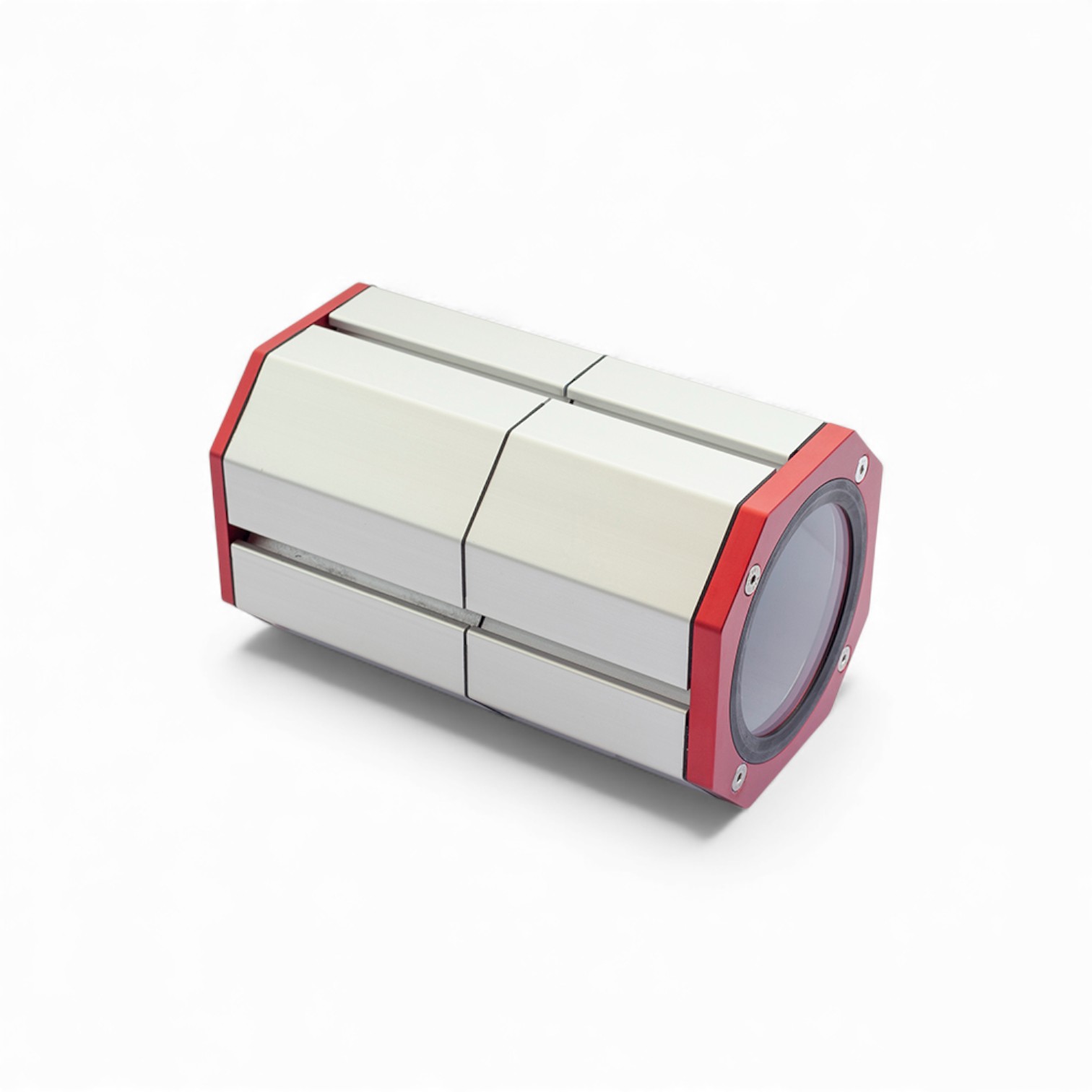

The CH87 Industrial Camera Enclosure is a universal solution for various cameras and lenses, especially those, that do not fit in the CH50 product line.

The rugged industrial camera housing provides increased protection of the industrial camera not only from mechanical damage. Another level of industrial camera enclosure protection is against dirt and grease. Special designs and seals provide IP66 resistance to pressurized water.

Thanks to solid aluminum, it also serves as basic passive cooling.

Examples of suitable cameras:

BASLER		COGNEX	FLIR	OPTRIS	KEYENCE
Basler ace acA4096	Basler pilot piA1600	Cognex CIC-2900	Flir Firewire	Optris IR PI 05M *	Keyence CX-V CA-H2100
Basler ace acA4112	Basler pilot piA2400	Cognex CIC-4KL	Flir Gazelle	Optris IR PI 160 *
Basler beat beA4000	Basler pilot piA640	Cognex CIC-5000	Flir Grasshopper2	Optris IR PI 1M *
Basler MED ace 12.3	Basler racer raL12288		Flir Grasshopper3	Optris IR PI 200 *
Basler MED ace 8.9	Basler racer raL2048		Flir Chameleon3	Optris IR PI 230 *
Basler pilot piA1000	Basler racer raL4096		Flir IR A35 *	Optris IR PI 400i *
	Basler racer raL6144		Flir IR A65 *	Optris IR PI 450 G7 *
	Basler racer raL8192		Flir Oryx	Optris IR PI 450i *
	Basler runner ruL2048		Flir USB2	Optris IR PI 640 *
	Basler runner ruL2098			Optris IR PI 640 G7 *
	Basler scout scA1300
	Basler scout scA1400
	Basler scout scA1600
	Basler scout scA640
	Basler scout scA750

* For infrared cameras, the required glass / germanium material must be specified in the order.

Products specifications

IP Rating	IP69/IP69K
Inner housing diameter	87mm
Window diameter	83mm
Weight	2,5kg
